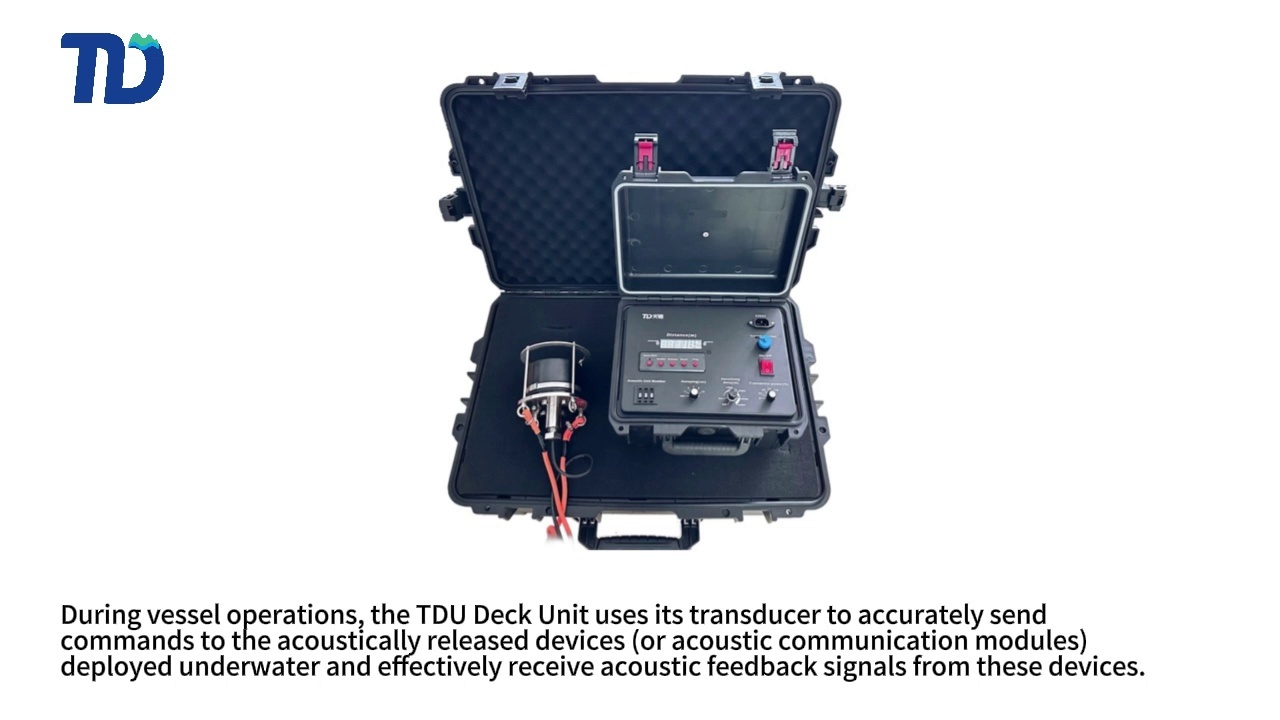

TDU Deck Control Unit

The TDU Deck Unit is meticulously developed by Tiandun High-Tech (Beijing) Technology Co., Ltd., specifically designed to accompany its Sino-ART series acoustic releases and acoustic communication modules. During vessel operations, the TDU Deck Unit uses its transducer to accurately send commands to the acoustically released devices (or acoustic communication modules) deployed underwater and effectively receive acoustic feedback signals from these devices. This interactive process ensures the smooth realization of key functions such as release and recovery, communication, and precise ranging.contactus

Product Features  (TDU  Deck Control Unit)

·Ranging LED display;

·Automatic/Manual pulse setting for slant range measurement;

·Manual adjustment of receiver sensitivity & transmitter power;

·Lightweight and portable, splash-proof packaging;

·Internally installed small UPS power supply;

·Includes transducer with 10-meter cable;

·Signal light indicates receiver audio signal, audio indicates receiver's sound signal;

Technical Specifications （TDU  Deck Control Unit）

1. General Performance

(1) Depth Rating: 6000 meters;

(2) Operating Frequency: 7k-15kHz;

(3) Communication Range: 10000 meters;

(4) Weight: Main unit 7kg, Transducer 4kg (Weight in air including 10m long cable);

(5) Operating Temperature: -20 to +45°C;

2. Control Unit

(1) Main Acoustic Commands: Self-test, Release, Reset. Each command consists of eight pulses. Pulse frequency depends on unit number, except for the "Reset" command.

(2) Acoustic Communication Command: FSK-8 bit;

(3) Programmable Digital Modem: 128;

(4) Input Voltage Range: External 220 VAC (with charging function), Internal 9 - 24 VDC;

(5) Internal Power Battery: Rechargeable lithium battery, 16.8V @ 5Ah;

(6) Maximum Continuous Operating Time: Up to 12 hours;

3. Transducer

(1) Resonant Frequency f: 13 kHz;

(2) Depth: Unlimited;

(3) TVR @ f : 137 dB re 1 μPa/V @1m;

(4) Beam Width: 260 deg @ -3dB;

(5) Beam Type: Hemispherical;

(6) Input Power: Maximum 330 W;
