TDP2 Extra-Heavy-Duty Deep-Sea Parallel Acoustic Release | Dual-Safety Design

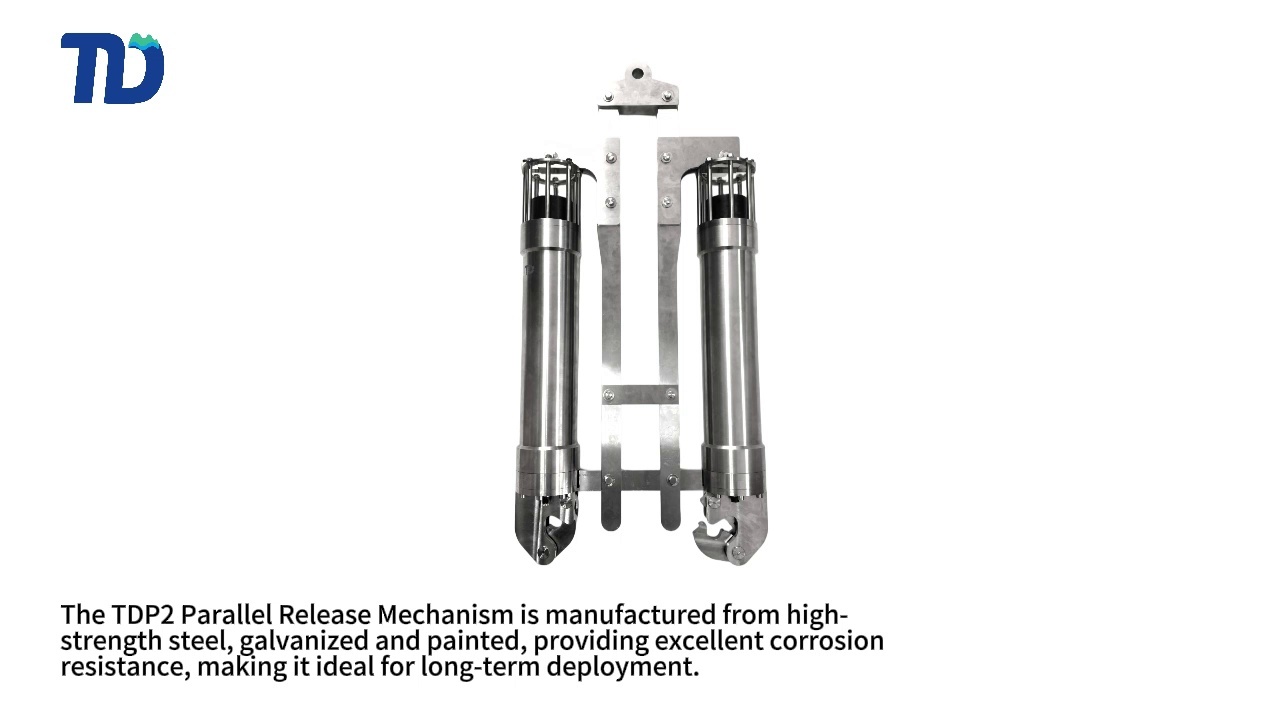

The TDP2 Parallel Release Mechanism is manufactured from high-strength steel, galvanized and painted, providing excellent corrosion resistance, making it ideal for long-term deployment. It can withstand at least three years of continuous operation in seawater without corrosion. This mechanism can be easily assembled on-site and, in most cases, installed without any modifications to the Sino-ART acoustic release itself. The standard maximum load for the TDP2 is 5,500 kg. Additionally, custom frames for specific applications or higher load ratings can be provided upon special request.

contactus

Performance Advantages  （TDP2 Parallel Release Mechanism）

l Strong, reliable, durable, corrosion-resistant;

l Low power consumption, suitable for long-term mooring;

l Full ocean depth, operable in low-temperature environments;

l Low maintenance or maintenance-free;

l Dual acoustic release mechanism significantly increases recovery rate;

l Parallel release mechanism can provide additional working load capacity;

Technical Specifications  （TDP2 Parallel Release Mechanism）

(1) Operating Depth: 6000m;

(2) Length: 1023mm (excluding chain);

(3) Width: 510mm;

(4) Maximum Load: 5500 kg;

(5) Material: 316 Stainless Steel (Titanium alloy optional);

(6) Corrosion Resistance: Supports continuous operation in seawater for 3 years (corrosion-free);

(7) Weight in Air: 27.7 kg;

(8) Weight in Water: 19 kg;
