SinoTD20 Communication Transducer
1. Introduction (SinoTD20 Communication Transducer)

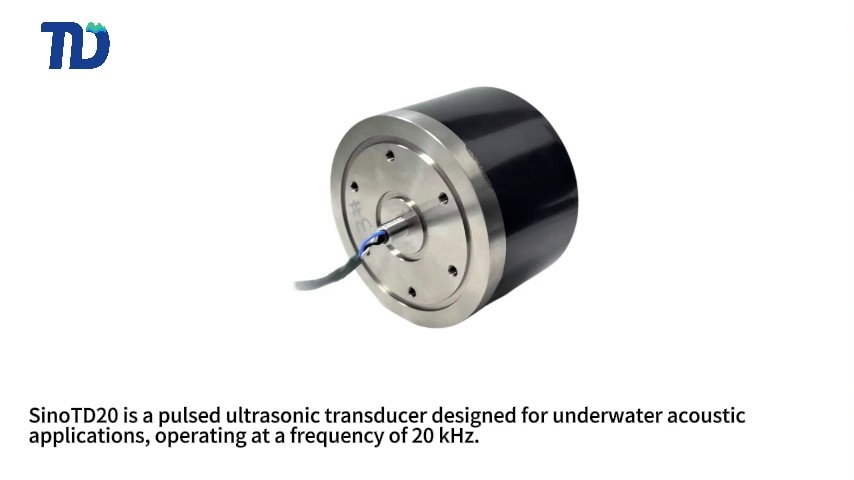

SinoTD20 is a pulsed ultrasonic transducer designed for underwater acoustic applications, operating at a frequency of 20 kHz. It supports multiple pulse signal types (such as sine wave, Chirp, PSK, FSK, etc.), making it suitable for underwater acoustic systems requiring high-power pulse output. The transducer features omnidirectional horizontal directivity (360°) and 90° vertical directivity at resonance frequency. Its design takes into account power limitations, thermal management and various mounting methods, making it suitable for complex underwater environments.
2. Main Application Scenarios (SinoTD20 Communication Transducer)
(1) Underwater wireless communication
(2) Underwater positioning and navigation
(3) Underwater detection and imaging
(4) Engineering monitoring
(5) Underwater acoustics scientific research
3. Technical Specifications (SinoTD20 Communication Transducer)
No. | Parameter | Performance |
1. | Center Frequency | 20 kHz |
2. | Max. Input Pulse Power | 350 W |
3. | Free-Field Voltage Sensitivity (FFVS) | -195.0 dB V/μPa @ fs |
4. | Transmitting Voltage Response (TVR) | 139-142 dB μPa/V @ 1 m |
5. | Beam Pattern | omnidirectional (f ≤ 9 kHz) |
6. | Azimuth Angle | Omnidirectional (horizontal) × 90° (vertical) |
7. | Dimensions | Ø 77 × 60 mm (excluding connector) |
8. | Weight | 1.8 kg |
9. | Operating Depth | 300 m |
10. | Operating Temperature Range | -10°C to +60°C |
11. | Cable Length | 60cm |
