SinoAR Low-Power Acoustic Release Module

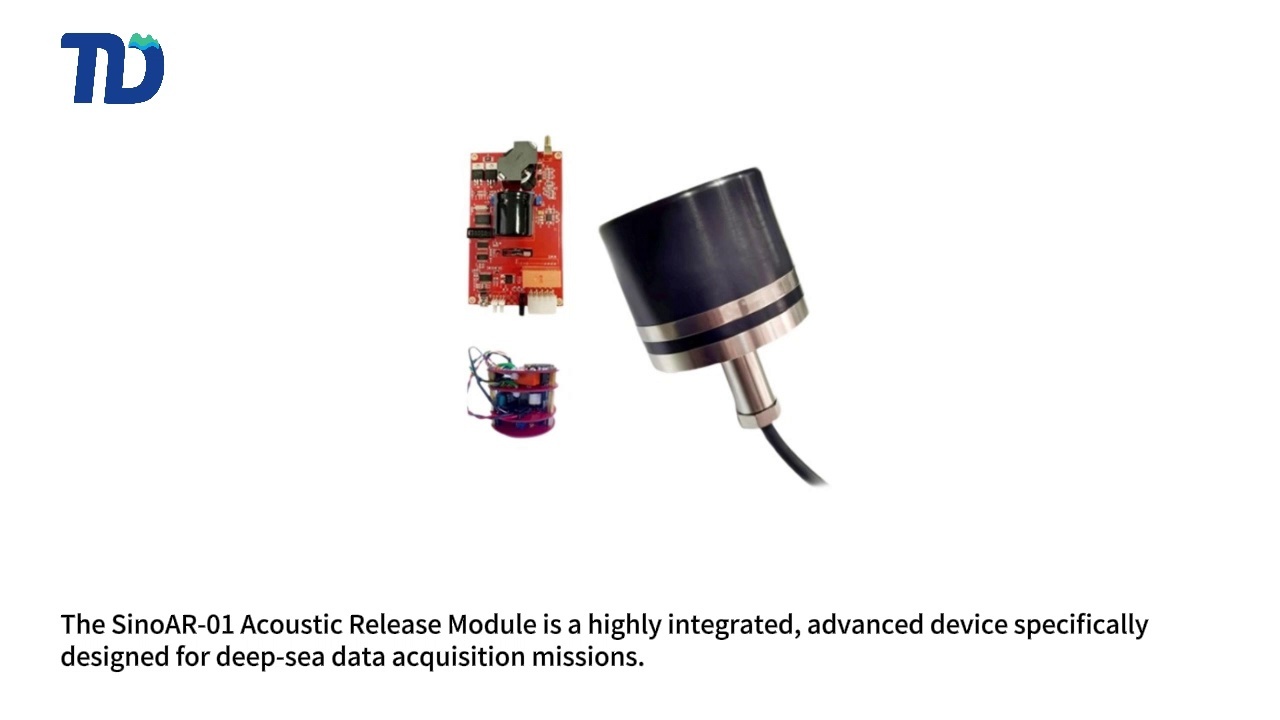

The SinoAR Acoustic Release Module is a highly integrated, advanced device specifically designed for deep-sea data acquisition missions. This module enables precise remote control and release via acoustic signals, eliminating the need for cable connections and thereby simplifying the recovery process of deep-sea data acquisition equipment. The module consists of a communication transducer and a communication control board, offering high flexibility and compatibility. It can be integrated with various underwater platforms, such as Ocean Bottom Seismometers (OBS), marine surveying equipment, and buoys, and is widely used in complex marine operations including marine scientific research, resource exploration, and environmental monitoring.contactus

Features (SinoAR Low-Power Acoustic Release Module)

l Compact design for easy installation and integration;

l Inherits the high reliability of the "GeoproOBS" acoustic release;

l Supports two operating modes: Deck Unit command release and timed automatic release;

l Compatible with Tiandun's independently developed TDU series deck units;

l Optional radio beacon and indicator light to enhance surface search capability;

Technical Specifications (SinoAR Low-Power Acoustic Release Module)

（1）Operating Depth: Up to 6,000 meters;

（2）Communication Range: Up to 10,000 meters;

（3）Operating Frequency: 7-15 kHz;

（4）Pulse Interval: 1 s (command), 8 s (ranging);

（5）Serial Interface: UART, USB (optional);

（6）Valid Node Address: 1-120 (can only be set by the manufacturer);

（7）DC Input Voltage: 5-20 VDC

（8）Standby Current: 8 mA

（9）Beacon: LED beacon + radio beacon (433 MHz / 100 mW)

（10）Operating Temperature: -20 to 45℃;
