PTD-CHIRP2 SBP（AUV）

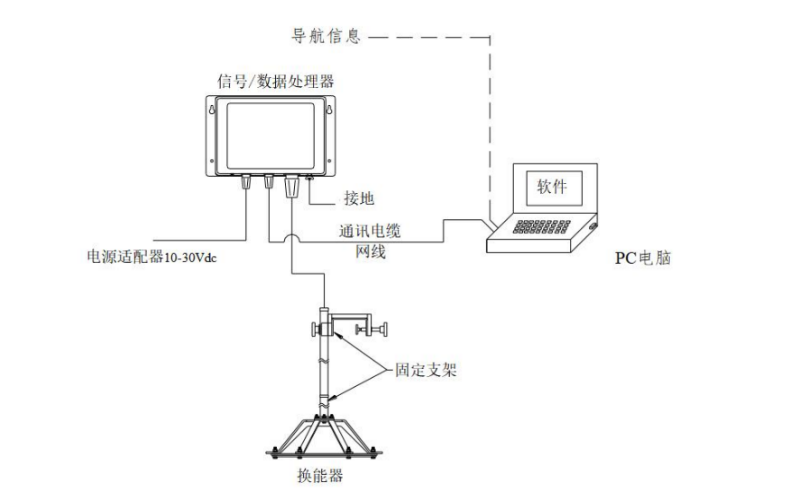

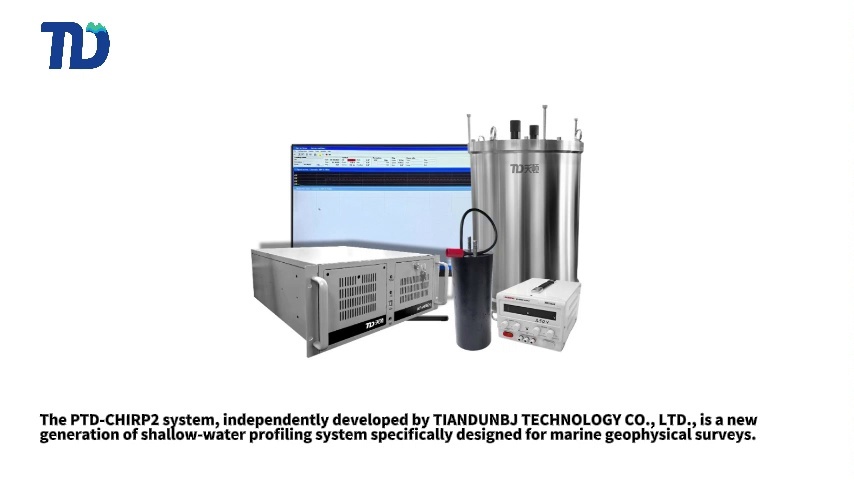

The PTD-CHIRP2 system, independently developed by TIANDUNBJ TECHNOLOGY CO., LTD., is a new generation of shallow-water profiling system specifically designed for marine geophysical surveys. The system supports both automatic and manual measurement modes, making it suitable for measuring water depth and shallow-water profiles. With a maximum penetration depth range of 500 meters and a maximum penetration depth of up to 50 meters, it boasts excellent stratigraphic resolution (up to 15 centimeters). The equipment consists of a signal/data processor, a transducer, and a PC computer, which can be integrated into an instrument cabin and operated through a streamer system for deep-sea operations. The PTD-CHIRP2 system not only excels in technical performance but also plays a significant role in marine geophysical surveys, providing users with precise geological information and facilitating the progress of deep-sea resource exploration and environmental research.

1. Product features (PTD-CHIRP2 SBP)

1) The maximum penetration depth of the stratum reaches 50 meters;

2) Up to a resolution of 15 centimeters;

3) Built in GPS input, compatible with NMEA;

4) Compatible with Hypack and SonarWiz;

5) Support data storage and playback;

6) Users can manually output the sound speed;

2. Technical specifications  (PTD-CHIRP2 SBP)

1) Stratigraphic resolution: 15cm;

2) Bottom penetration depth: 50m;

3) Depth resolution: 0.01m;

4) Depth accuracy: 0.5% FS;

5) Beam width: 30 °;

6) Operating frequency: 3.5kHz;

7) Pulse type: Continuous Wave (CW);

8) Input power supply: 220VAC ± 10%, 50Hz ± 1Hz;

9) Communication interface: RS 232；
