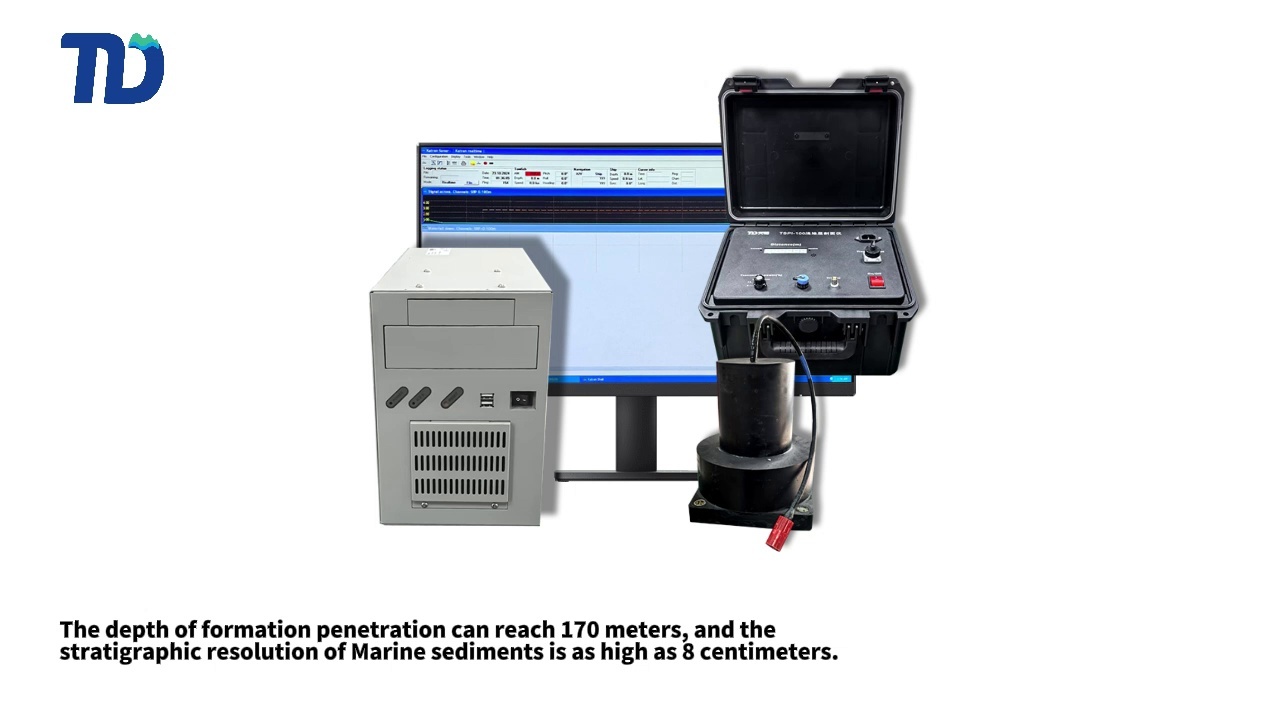

PTD-CHIRP Sub-Bottom Profiler（Shipborne）

The PTD-CHIRP system, independently developed by Tiandunbj Technology Co., Ltd., is a new generation of shallow-water profiling system. It supports both automatic and manual measurement modes, making it highly suitable for nearshore and offshore geophysical oceanographic survey applications.

The PTD-CHIRP shallow-water profiler is primarily designed for measuring water depth and shallow-water profiles, boasting full ocean depth capability with a maximum penetration depth of up to 170 meters and a stratigraphic resolution of up to 8 centimeters. Furthermore, the PTD-CHIRP shallow-water profiler is equipped with various functions and features, including a Windows operating system, PCI architecture, SEG-Y format storage, DGPS, wave compensation, and sound velocity input.

Contact Us

1. Product features  (PTD-CHIRP Sub-Bottom Profiler)

1) The penetration depth of the formation can reach up to 170 meters, with a resolution of up to 8 centimeters for marine sediment formations

2) Centimeter resolution;

3) GPS input, NMEA compatible;

4) Hypack and SonarWiz are compatible;

5) Data storage and playback;

6) Zoom mode;

7) Event marker;

8) Single frequency 3.5kHz;

9) The speed of sound can be manually output;

10) Support CHIRP technology;

2. Technical specifications  (PTD-CHIRP Sub-Bottom Profiler)

a) Measurement channel: single channel;

b) Frequency output: 3.5kHz;

c) Transmitting output power: 2-10 kW, depending on the power amplifier;

d) Input power supply:

I. Server – 115 or 230 VAC (auto-detect), < 100 W

II. Monitor keyboard - 115 or 230 VAC (auto-detect), < 50 W

III. Sonar processor and power amplifier – 115 or 230 VAC (switch selectable), < 500 W

e) Gain settings: manual gain setting, automatic gain setting (AGC), and time-based gain setting (TVG);

f) Depth range: 10, 20, 40, 80, 150, 300, 500, 750, 1000, 2000, 5000, 12000 meters;

g) Offset range: 0-150 meters, in increments of 1 meter;

h) Zoom range: 5, 10, 20, 40, 80, 160, 320, 640 meters;

i) Zoom modes: Bottom Zoom, Bottom Lock Zoom, Marker Zoom, GUI Zoom (only during playback);

j) Display: normal data, magnified data, navigation, depth, command/status, data color control (4 Optional or customizable), the data color can be inverted;

k) Stratigraphic resolution; up to 8 centimeters when penetrating to a depth of 170 meters (depending on frequency and bottom type);

l) Depth resolution: 0.1 meters;

m) Sound velocity: user-selectable from 1400 to 1600 m/s;

n) Navigation input: NMEA 0183, GLL, GGA, RMC, VTG, VHW, HDT;

o) Selectable baud rates (RS-232): 4800, 9600, 19200, 38400;

p) Depth/navigation output: NMEA 0183, DPT, DBT, PMC, ODEC, and ODC;

q) Selectable baud rates (RS-232): 4800, 9600, 19200, 38400;

r) Size and weight:

I. Server - 8.89 x 48.26 x 47.625 cm, 16kg;

II. Monitor/keyboard - 4.445 x 48.26 x 51.435 cm, 3kg;

III. Sonar processor and power amplifier - 13.335 x 48.26 x 48.26 cm, 12kg;

s) Environment: Operating temperature: 0 to 50 degrees Celsius, humidity: 0 to 95% (non-condensing)
