1.Product introduction （power amplifier）

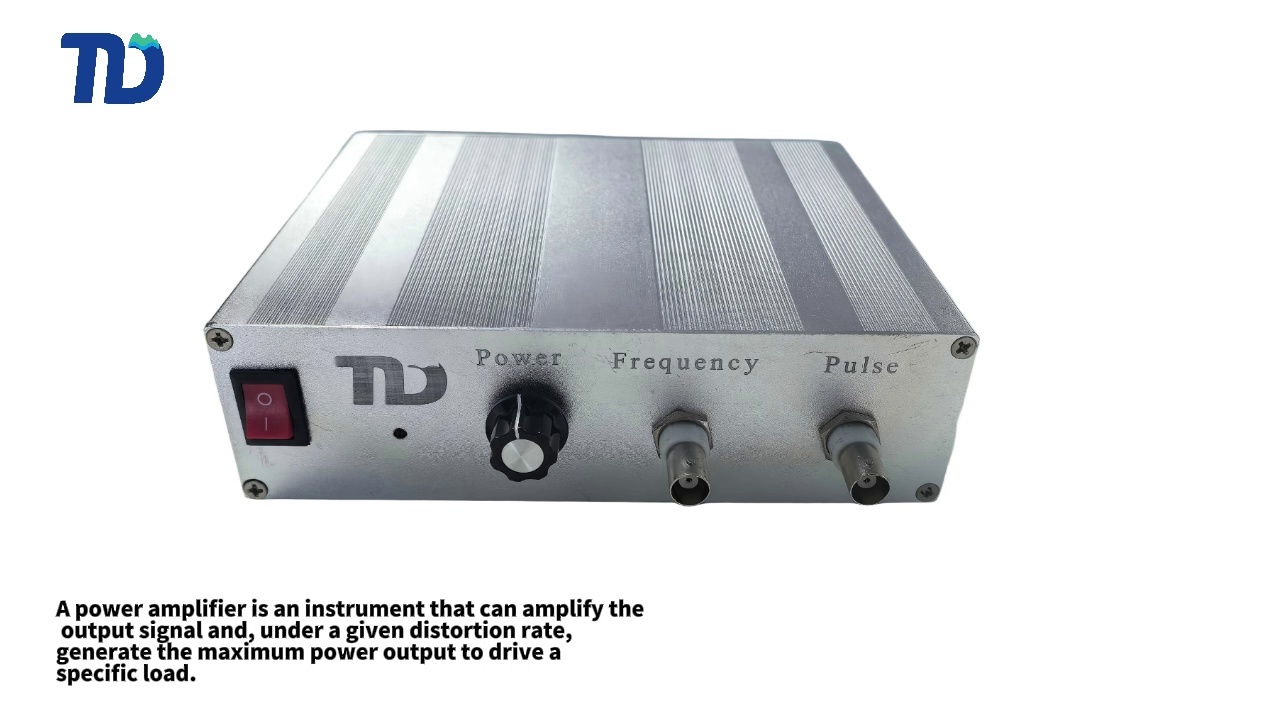

A power amplifier is an instrument that can amplify the output signal and, under a given distortion rate, generate the maximum power output to drive a specific load.
The power amplifier designed by Tiandun can be used in conjunction with mainstream signal generators to achieve perfect signal amplification, converting the input low-voltage sine signal into a high-voltage square wave signal.
2.Technical specification （power amplifier）
input
Input: BNC connector; Input resistance: 50Ω.
Power supply voltage: DC 12~24V.
output
Output interfaces: SMA, BNC
Output pulse duration: Adjustable.
Voltage Gain
The voltage gain of the power amplifier is adjustable between 20 and 40 times, allowing customers to make quick adjustments according to their own needs.
Signal Input and Output
 |
Application Areas
It is mainly used for experimental testing of equipment such as hydrophones in colleges and universities.
 |
