INTRODUCTION
The TDH-62 deep-sea spherical hydrophone adopts a high-strength spherical structure design, specially designed for extreme high-pressure environments in the deep sea. It has passed the 60MPa (about 6000 meters working depth) pressure test certification and has excellent reliability and durability. This product uses high-performance spherical piezoelectric ceramic components and can be paired with a 10-30dB preamplifier to cover a wide frequency range of 10Hz-200kHz, achieving 360 ° omnidirectional acoustic response. TDH-62 has the characteristics of low background noise, compressive stability,
and full frequency sensitivity, making it an ideal acoustic detection device for deep-sea resource exploration, marine environment monitoring, underwater acoustic communication, and other fields.
Main Application Scenarios
- Hydrophones of sonar buoys
- Transducers for underwater positioning
- Reference hydrophones, noise measurement
- Measurement of ultrasonic cavitation noise
- Passive acoustic monitoring
- Forming hydrophone arrays or vector
- Marine bio-acoustics
Technical Specifications
Parameter | Specification |
Sensitivity @1kHz | -215 dB V/μPa ± 2dB |
Band width | 10Hz ~ 200kHz |
Pre-amplifier | None (10 - 30dB optional) |
Output type | Differential output optional (single ended output optional) |
Cable | High-quality professional acoustic cable, default 2 m (max 1000m optional) |
Size | Φ 28 (Sphericity) x140mm |
Weight | ≤300g, with 1m cable |
Max working depth | 6000 meters |
Operating temperature | -10°C ~ +80°C |
Storage temperature | -40 °C ~ +80 °C |

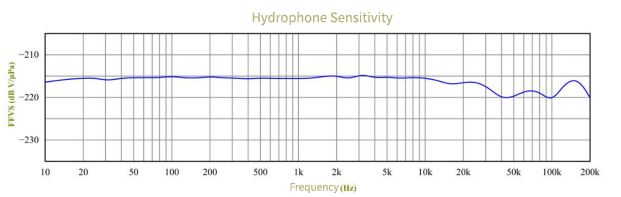

Sensitivity Curve

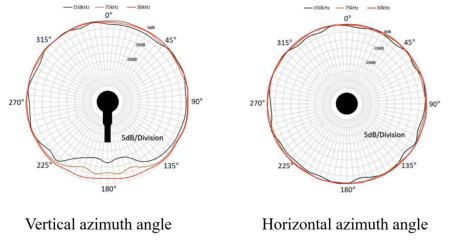

Directivity

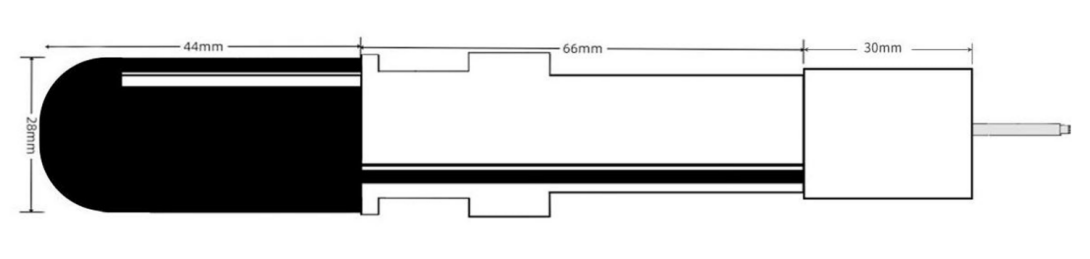

Structure & size
